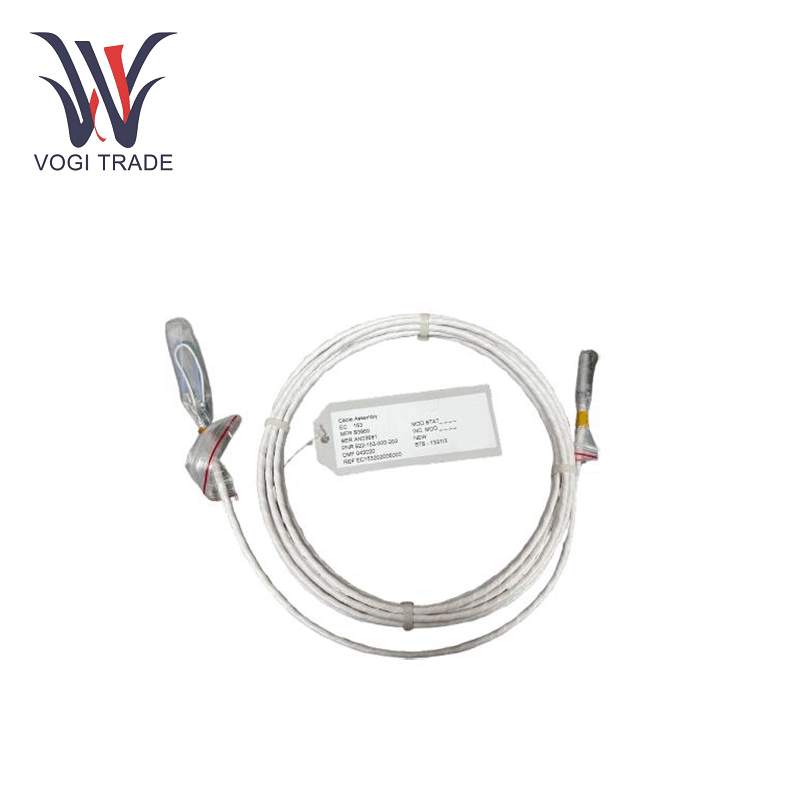

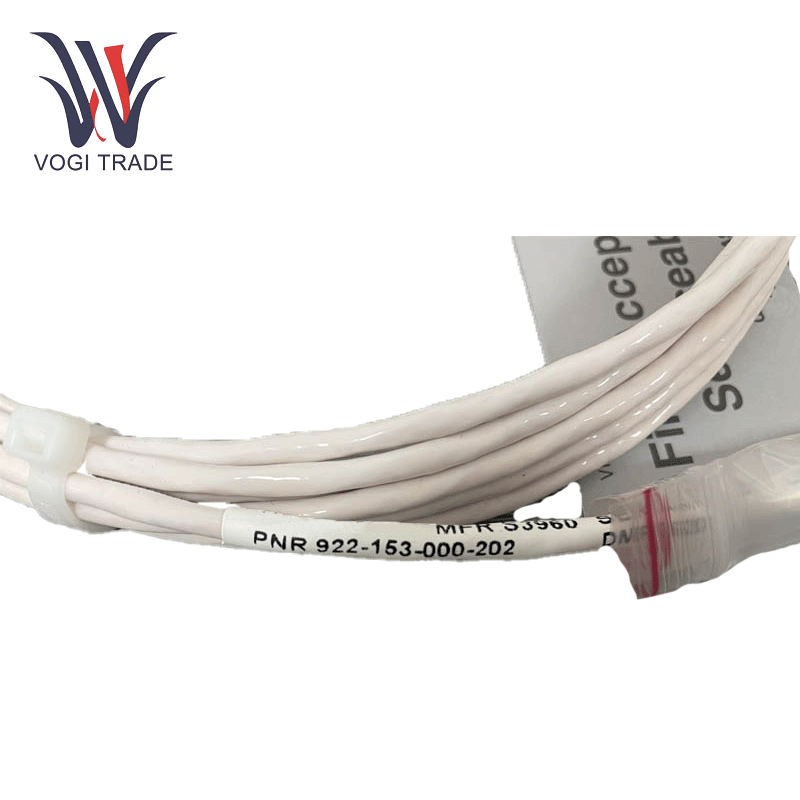

EC153 922-153-000-202

Technical Parameters

Operating Voltage Range: Supports 12-48V DC input for versatile power compatibility.

Communication Interfaces: Integrates CAN bus and RS-485 protocols for industrial automation connectivity.

Temperature Tolerance: Operational from -40°C to +85°C, suitable for harsh thermal conditions.

IP Rating: IP67-certified housing for dust/water resistance in rugged environments.

Certifications: Complies with ISO 13849 (safety) and IEC 61373 (vibration/shock standards).

Key Features

What sets the EC153 922-153-000-202 apart is its precision technology:

Low Noise Signal Transmission: The use of K205A shielded cable helps mitigate EM interference enabling proper gathering of vibration data in high sensitive systems in the EC153 922-153-000-202.

Connection security : The push-pull type LEMO connector (VM type 0) provides simple and secure connection to save installation time during sensor exchange.

Flexible Integration: The 2-wire shielded assembly is designed for easy implementation with several vibration monitoring systems and retains signal integrity over long distances.

Application Scenarios

Power Generators: Real-time vibration monitoring can identify imbalances or bearing wear in gas or steam turbines using the EC153 922-153-000-202 before equipment fails.

Industrial Machinery: As a mining equipment or CNC machine cable assembly, it provides vibration analysis to help maximize uptime.

Compatible Equipment

The EC153 922-153-000-202 is optimized for use with leading vibration sensors:

Sensor Compatibility: It pairs seamlessly with CA901 accelerometers, CP103 proximity probes, and CP21x series sensors, enhancing data reliability in predictive maintenance setups.

System Integration: Ideal for integration into TSI (Turbine Supervisory Instrumentation) systems, the EC153 922-153-000-202 ensures uninterrupted communication between sensors and monitoring units like Emerson’s Bently Nevada or Honeywell’s industrial controllers.

Installation & Maintenance

Simplified Installation: Follow color-coded wiring guidelines and ensure connectors are fully seated to avoid signal loss. Route the EC153 922-153-000-202 away from high-voltage cables to prevent interference.

Preventive Maintenance: Regularly inspect the PTFE sheath for wear and clean connectors with industrial-grade solvents. For extended lifespan, avoid bending the cable beyond its 4.2 mm diameter tolerance.

Troubleshooting: If signal noise occurs, verify shield grounding at one end (per IEC standards) and replace damaged sections with genuine EC153 922-153-000-202 components.
