GE IS230TNDSH2A Dewan Terminal PDIO

Technical Parameters

GE IS230TNDSH2A Channels:

Discrete Inputs: 24 isolated contact inputs

Relay Outputs: 12 Form C isolated relay outputs

Wetting Voltage (Inputs): 18–32 V DC (nominal 24 V DC)

GE IS230TNDSH2A Output Ratings (Relays):

Max Switching Voltage: 125 V DC

Max Switching Current: 2 A per contact

GE IS230TNDSH2A Response Times:

Input Scan: ≤ 4 ms debounce

Relay Operate/Release: ≤ 10 ms/5 ms

Isolation: Channel-to-channel and channel-to-ground reinforced isolation

Connectivity: Right-angle PCB header for 52-position pluggable terminal block

GE IS230TNDSH2A Operating Conditions:

Temp: –40 °C to +70 °C

Humidity: up to 95 % RH, non-condensing

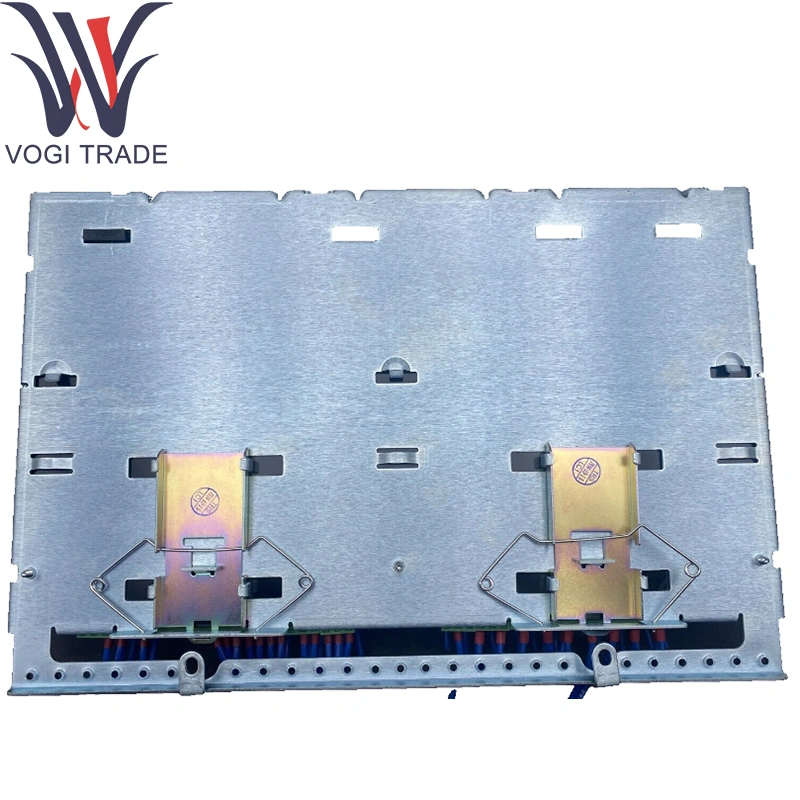

Mounting: DIN-rail (35 mm) or flat panel with adapter clips

Product function

GE IS230TNDSH2A PDIO Terminal Board Provides a rugged, high-density termination point for mixed discrete I/O signals, translating field-wired contacts and loads into conditioned, isolated channels for the PDIO I/O pack. It centralizes wiring, ensures signal integrity through galvanic isolation and overvoltage protection, and interfaces directly to the IONet Ethernet bus via the I/O pack.

Core supporting modules

Discrete I/O Pack: IS220PDIOH1A (simplex) or IS220PDIOH1B (redundant)

Controller: Mark VIe CPU modules (e.g., IS200TPROH1C series)

Safety & Logic: Mark VIeS safety processors where PDIO feeds safety interlocks

Extension components

Terminal Blocks: Screw-clamp pluggable blocks keyed to prevent mis-insertion

DIN-Rail/Pedal-Mount Clips: Adapter kits for 35 mm DIN-rail or panel mounting

Shielding Accessories: Cable-shield clamps and ferrite beads for EMI suppression

Spare Relays & Maintenance Kits: Replacement relay cartridges and terminal-block kits

Software support

Configuration & Calibration: None on the board—channels are defined by pack firmware

Diagnostics: Input status, relay operation, and error counters reported via controller diagnostics and HMI alarms

Integration: Transparent to GE ControlST™/ToolboxST™ engineering tools and Mark VIeS application software

Firmware Updates: Delivered as part of I/O pack firmware via ToolboxST™

Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide and PDIO Pack Reference Manual
